The Bar 6 overhead bin is built to last. With the option of two commodity compartments, it has never been so easy to buy feed in bulk.
Overhead Bins

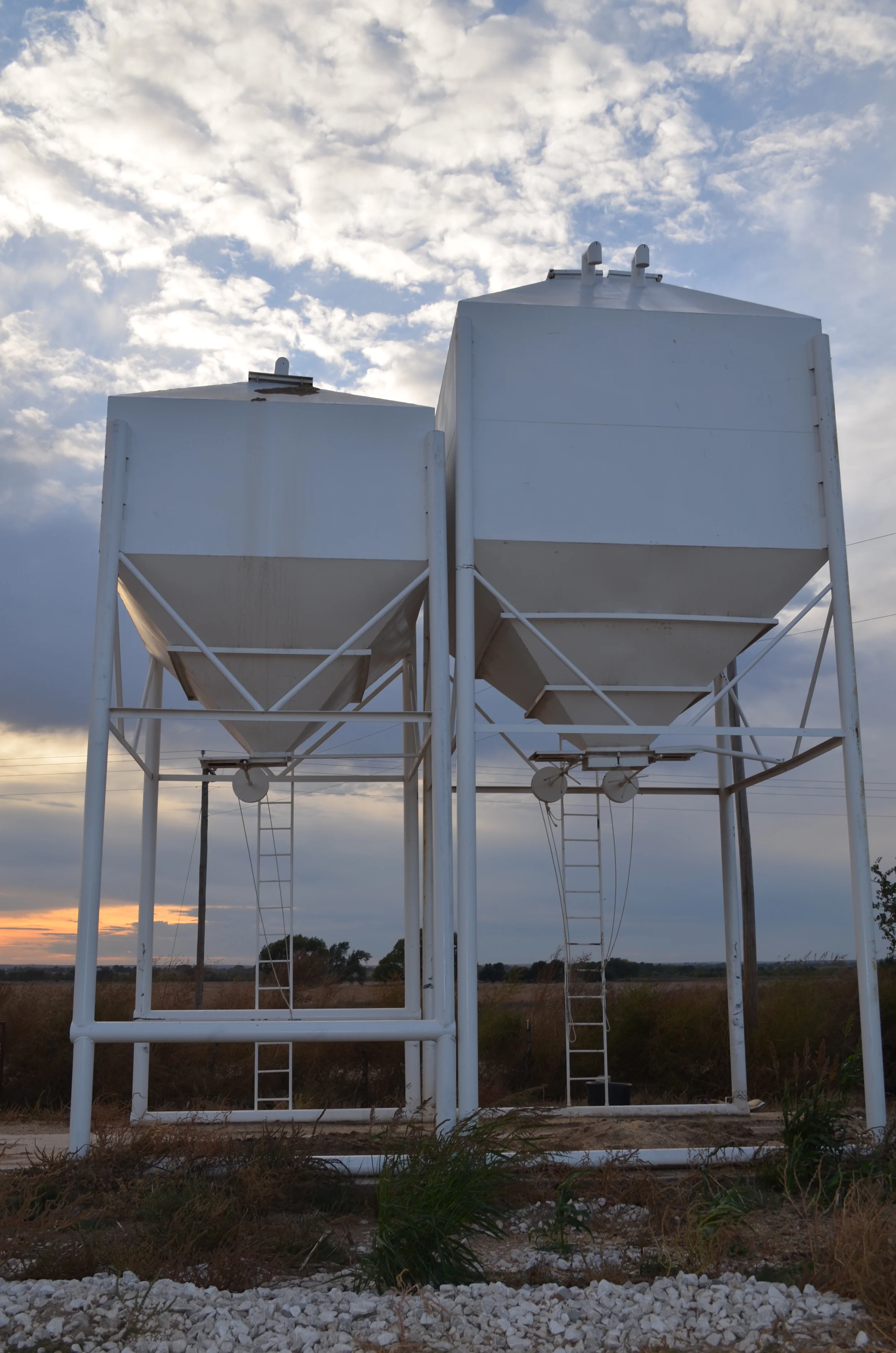

16 Ton Single and 30 Ton Double Overhead Bins
30 Ton Double Overhead Bin - 12ft Discharge
24 Ton Overhead Bin
Features:
• No motors or augers
• Primed and painted in the color of your choice
• These overhead bins are easy to move from one location to another
• Constructed of 12 gauge sheet metal, legs are made of 6 ¾” O.D. pipe
SPECS:
12 Ton:
• Holds 600 bushel
• 10’ x 10’ square
• 23’ fill height with 9’ discharge
16 Ton:
• Holds 750 bushel
• 10’ x 12’ square
• 24’ fill height with 9’ discharge
20 Ton:
• Holds 1000 Bushel
• 10’ x 12’ square
• 25’ fill height with 9’ discharge
24 Ton:
• Holds 1200 Bushel
• 12’ x 12’ square
• 25’ fill height with 9’ discharge
30 Ton:
• Holds 1400 Bushel
• 12’ x 12’ square
• 27’ fill height with 9’ discharge
All Overhead bins can be split in half to hold two different commodities, and the discharge can go up to 13’ in height.
Options:
• Bottom Gate Openers
• Drop Spouts
• 6” or 12” Ventilators
• Star or Rope Pull
• J-Tubes
• Center Divider
